Common Shutter Release Leads

The dropController is compatible with cameras that are able to use a wired remote only.

Various leads for many different makes and models of camera are available. If your camera is not listed please contact me and if I do not already have a lead I may be able to get one.

Each dropController device comes with one shutter release lead of your choice included. Only US$9.00 / HK$70.00 each if you want to add more.



Canon E3


3 segment, 2.5mm jack.
1000D, 1100D, 1200D, 1300D, 1500D, 2000D, 100D, 200D, 250D, 300D, 350D, 400D, 450D, 500D, 550D, 600D, 60D, 60Da, 650D, 700D, 750D, 760D, 800D, 850D, 70D, 77D, 80D, 90D, 8000D
G1X, G1X II, G1X III, G3X, G5X, G10, G11, G12, G15, G16, SX50 HS, SX60 HS, SX70 HS
Kiss Digital, Kiss Digital F, Kiss Digital N, Kiss Digital X, Kiss X2, Kiss X3, Kiss X4, Kiss X5, Kiss X50, Kiss X70, Kiss X6i, Kiss X7i, Kiss X8i
Digital Rebel, Rebel SL1, Rebel SL2, Rebel SL3, Rebel T1i, Rebel T2i, Rebel T3, Rebel T3i, Rebel T4i, Rebel T5, Rebel T5i, Rebel T6, Rebel T6i, Rebel T6s, Rebel T7, Rebel T7i, Rebel T8i, Rebel XS, Rebel XSi, Rebel XT, Rebel XTi
EOS M5, EOS M6, EOS M6 MK II, EOS R, EOS RP, EOS R6, EOS R7

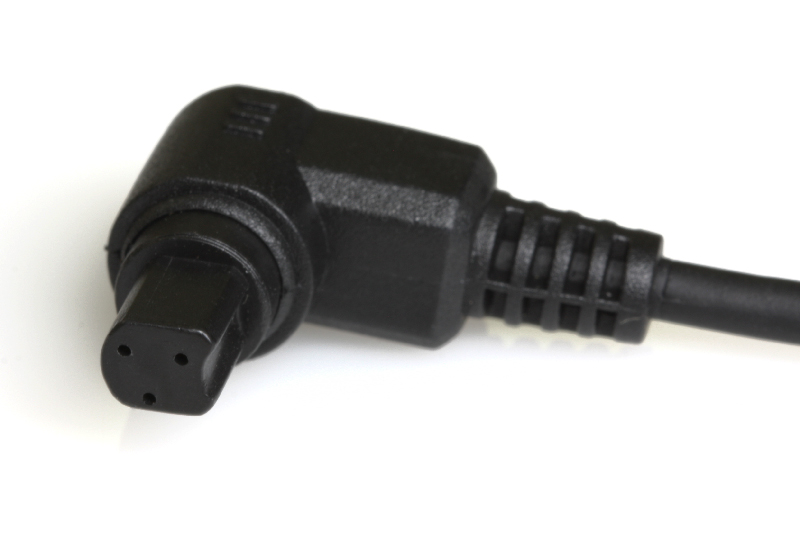

Canon N3


Proprietary 3 pin connector.
10D, 20D, 20Da, 30D, 40D, 50D, 1V
1D, 1D C, 1D MK II, 1D MK II N, 1D MK III, 1D MK IV, 1D X, 1D X MK II, 1D X MK III, 1Ds, 1Ds ASTRO, 1Ds MK II, 1Ds MK III
5D, 5D MK II, 5D MK III, 5D MK IV, 5Ds, 5Ds R, 6D, 6D MK II, 7D, 7D MK II, D30, D60, EOS 3, D2000, EOS R5

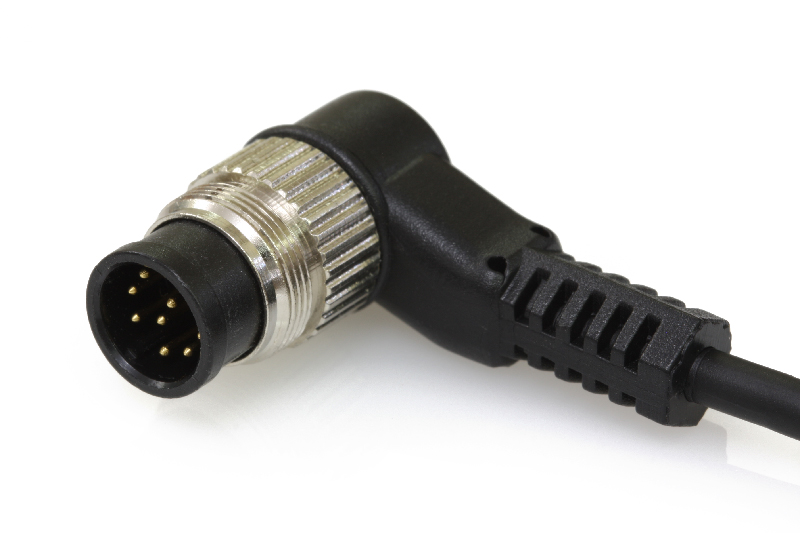

Nikon DC0


Proprietary multi-function 10 pin connector.
D100 (with MB-D100 battery grip), D200, D300, D300S, D500, D700, D800, D800 E, D810, D810 A, D850,
D1, D1H, D1X, D2, D2H, D2HS, D2X, D2XH, D2XS, D3, D3s, D3X, D4, D4S, D5
F5, F6, F90, F100
Mirrorless: Z8 & Z9



Nikon DC2


D750, D780, D3100, D3200, D3300, D5000, D5100, D5200, D5300, D5350, D5500, D5600, D600, D610, D7000, D7100, D7200, D7500, D90
Coolpix P7700, Coolpix P7800, Coolpix A, Coolpix P950, Coolpix P1000
Z6, Z7, Df

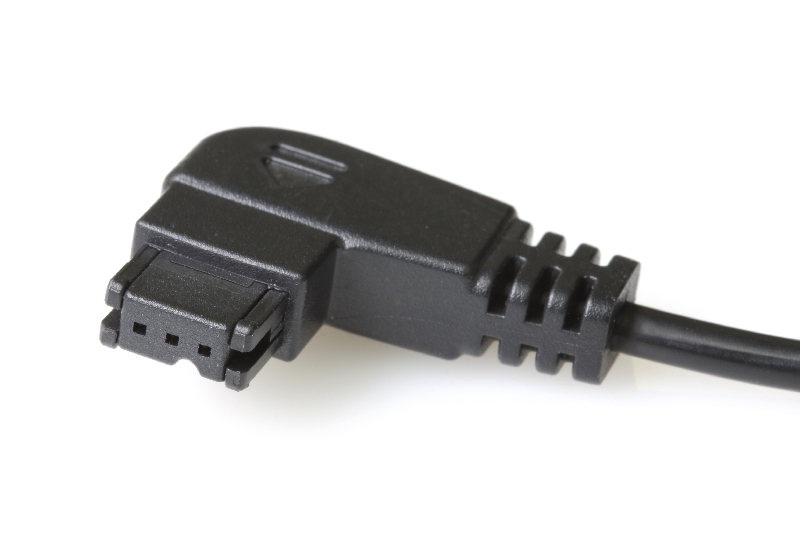

Sony S1


A100, A200, A300, A400, A450, A500, A550, A550V, A560, A580, A700, A850, A900
A33, A35, A350, A37, A55, A57, A65, A65V, A77, A77 II, A77V, A99, A99 II



Sony S2


A3000, A3500, A5000, A5000L, A5100, A6000, A6300, A6400, A6500, A6600,
A7, A7 II, A7 III, A7S, A7S II, A7R, A7R II, A7R III, A7R IV, A9, A9 II, A58, A68, RX10, RX10 II, RX10 III, RX10 IV, RX100 II, RX100 III, RX100 IV, RX100 V, RX100 VI, RX100 VII, RX100 Platinum,
HX300, HX400, HX50V, HX60, HX80, HX90, HX90V, NEX 3N, NEX-3NL



Panasonic L1


FZ100, FZ1000, FZ2000, FZ2500, FZ15, FZ150, FZ20, FZ20K, FZ20S, FZ200, FZ30, FZ30K, FZ30S, FZ300, FZ50, FZ50K, FZ50S
G1, G2, G3, G5, G6, G7, G9, G10, G70, G80, G85, GF1, GH1, GH2, GH3, GH4, GH5, GX1, GX7, GX8
L1, L10, LC1, S1, S1H, S1R, TS2, DIGILUX 2, DIGILUX 3

The Panasonic lead may have a 2.5mm plug with a 2.5mm to 3.5mm adaptor



FujiFilm DC0

Cameras that use Nikon Bodies use the Nikon style remote

S3 Pro, S5 Pro, IS Pro

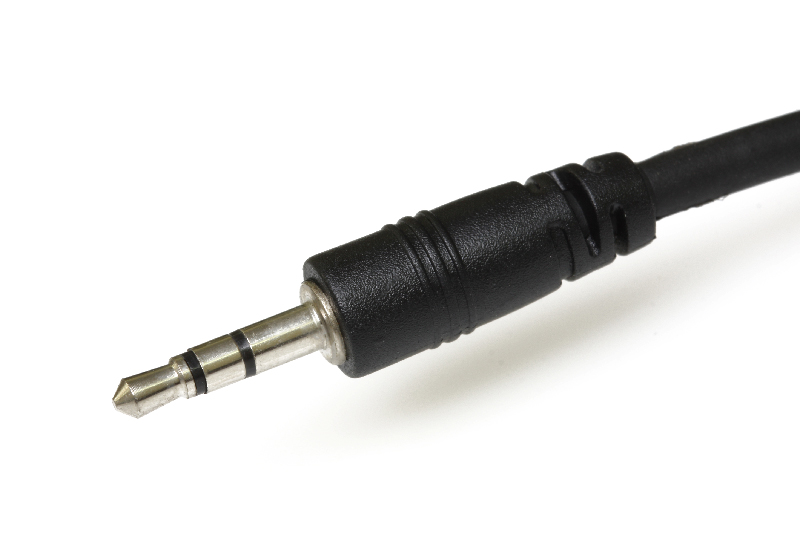

Fujifilm E3


X-E1, X-E2, X-E3, X-H1, X-T1, X-T2, X-T3, X-T4, X-T10, X-T20, X-T30, X-T100, X100T, X100F, X100V, X70
GFX 50R, GFX 50S, GFX 100
X-Pro2,

Some Fujifilm cameras can accommodate 2 different types of remote; a USB style connector and a 2.5mm jack. If not otherwise stated a 2.5mm lead will be provided for the compatible cameras.



Fujifilm RR-80


X-E1, X-S1
FinePix S100FS, S9000, S9100, S9500, S9600, IS-1, S20, S200EXR, S205EXR, HS20EXR, HS22EXR, HS25EXR, HS28EXR, HS33EXR, HS30EXR, HS35EXR, HS50EXR,

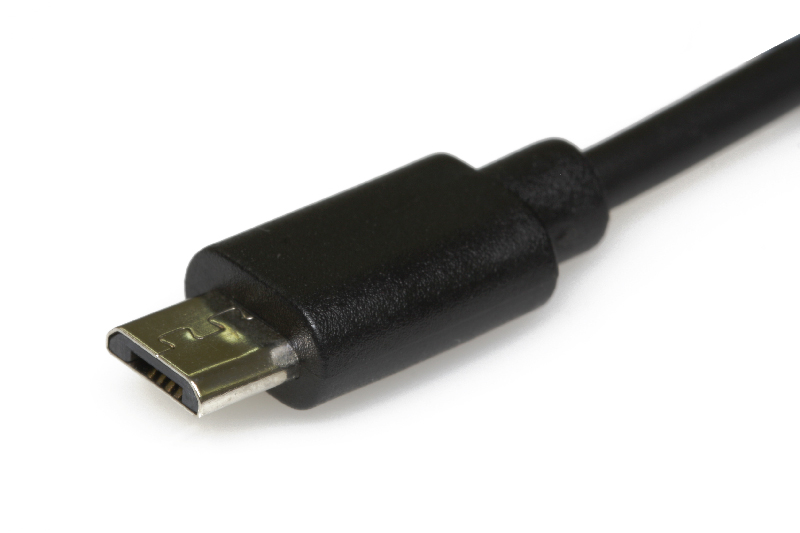

Fujifilm RR-90


FinePix S1, X-H1, X-T2, X-T1, X-T20, X-T10, X-E3, X-E2S, X-E2, X-M1, X-Pro2,
X-A5, X-A3, X-A2, X-A1, X-A10, X100F, X100T, X70, X30, XQ2, XQ1, GFX 50S,

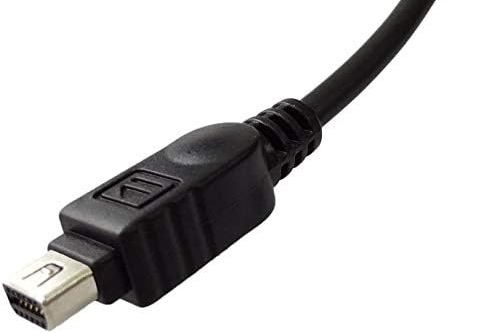

Olympus UC1


OM-D E-M1, OM-D E-M5, OM-D E-M5 Mark II, OM-D E-M10, E400, E410, E420, E450, E510, E520, E620, PEN E-P2, PEN E-P3, PEN E-P5, PEN E-PL2, PEN E-PL3, PEN E-PL5, PEN E-PL7, PEN E-PM1, PEN-F, SP-510UZ, SP-550UZ, SP-560UZ, SP-570UZ, XZ-1



Olympus / OM System CB2


Om System Om-1, Om-5, Olympus Om-D E-M1X, E-M1 Mark II, E-M1 Mark III, EM5 Mark III
